Large, centrally placed vent for improved air velocity
and
flow capacity |
15mm Birch with clever bracing brings lightweight yet
rigid
cabinet construction |
|
Double baffle board with flush mount transducers |
SIS pre-wired for very high damping and further reduced
distortion (with ALC) |
Dedicated protection in combination with SDP modules
(with ALC) |
|
Durotect™ scratch-resistant coating |
|
|
| |
 |

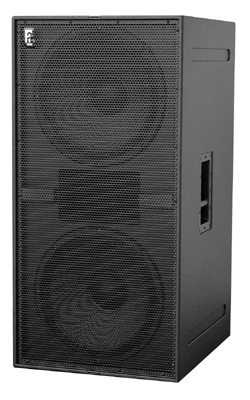

The BF362 is a front-loaded subwoofer
system, for both permanent and portable applications. Featuring
double 18” long-excursion high-power woofers (with vented double-spider
frame), the BF362 delivers high quality, tight and accurate sub-bass
response.
The SIS pre-wiring ensures complete cable/connector compensation
between ALC and BF362, further increasing response accuracy. Special
attention has been paid to the tuning of the system; Target was
to combine deep sub bass output with substantial kick-bass. With
a limited boost in the technical specifications BF362 lower octaves,
response can be further extended. Typical applications for the BF362
include sub-bass extension of main sound systems, used in multiples
depending on the application and low frequency requirements.
For full system performance, we recommend using the BF362 in combination
with an ALC 2 (or ALC 4) amplifier/controller. Driven by the ALC,
the BF362 delivers maximum sound quality and output power with dedicated
and inaudible (power and excursion!) protection (SDP circuit). |
| |
 |
 |
| |
| |
| Frequency Response |
| +/- 3 dB |
33 Hz - 150 Hz |
|
|
| +/- 10
dB |
27 Hz |
|
|
| Sensitivity
(SPL 1W/M) |
101 dB |
|
|
| Nominal
Impedance |
4 ohms |
|
|
| Maximum
RMS power |
2000 W |
|
|
| Maximum
peak power |
12000 W |
|
|
| SPL program/peak |
134/141 dB |
|
|
| Dispersion
H x V |
omni |
|
|
|
|
| System |
subwoofer, front loaded |
|
|
| Drivers
LF |
2 x AW18.4 18” woofer, |
|
|
| |
centrally vented |
|
|
| Cross-over
frequency HP |
30 Hz. recommended |
|
|
| Connectors |
2 x Speakon NL4 input |
|
|

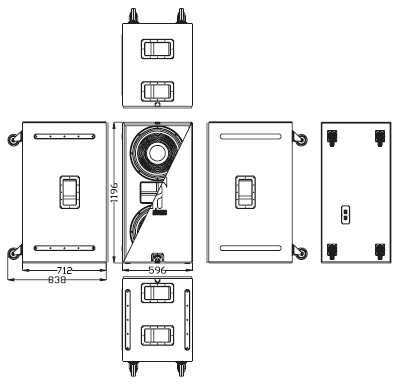

| Physical
dimensions |
mm |
in. |
|
|
|
| Height |
1196 |
47,1 |
|
|
|
| Width |
596 |
23,5 |
|
|
|
| Depth |
712 |
28,0 |
|
|
|
| Weight
(approx.) BF362 |
95,0 kg |
(209 lb) |
|
|
|
| BF362i |
82,8 kg |
(182,1 lb) |
|
|
|
| Warranty |
6 years limited |
|
|
|
|
| |
The BF362 is available in standard version, or installation version.
The BF362i (“install”) comes without handles, castor wheels and
cover. |
| |
|
|
|
