Double-tuned band-pass design with high efficiency
Neodymium 15” drivers for excellent performanceto-
weight ratio
15mm Birch with clever bracing brings lightweight
yet rigid cabinet construction
High WLL flying system
Stackable and flyable with LR16 or in separate arrays
SIS pre-wired for very high damping and further
reduced distortion (with ALC)
Dedicated protection in combination with SDPmodules
(with ALC)
Durotect™ scratch-resistant coating

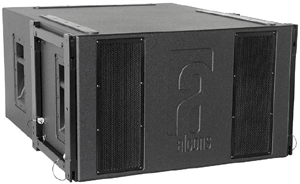

The LR16Bass is a double-tuned
band-pass bass system, for both permanent and portable applications.
Featuring double 15” long excursion woofers with Neodymium magnet
structures, the LR16Bass delivers high quality, high output bass
response from a compact and weight efficient package. The special
band-pass configuration offers LR16-matched bass response in full-space
(flown) and increased efficiency in half-space(stacked) applications.
The easy and accurate flying system, makes the system quick to set-up
in
combination with the LR16 line-array module.
The SIS pre-wiring ensures complete cable/connector compensation
between the LR16Bass and ALC.
The LR16Bass is designed as high-efficient bass extension of the
LR16, used in multiples depending on the array-length and low frequency
requirements.
For full system performance, we recommend using the LR16Bass in
combination with an ALC2 or ALC4 amplifier/controller. Driven by
the ALC, the LR16Bass delivers maximum sound quality and output
power
with dedicated and inaudible (power and excursion!) protection (SDP
circuit).
Frequency
Response
+/- 3 dB
46 Hz - 200 Hz
+/- 10
dB
37 Hz -
Sensitivity
(SPL 1W/M)
102 dB
Nominal
Impedance
4 ohm
Maximum
RMS power
1000 Watt
Maximum
peak power
3200 Watt
SPL program/peak
132/137 dB
Dispersion
H x V
omni
System
subwoofer, band-pass
Drivers
LF
2 x AW15.3ND 15”,
double vented
Cross-over
frequency HP
40 Hz. recommended
Connectors
2 x Speakon NL4 input

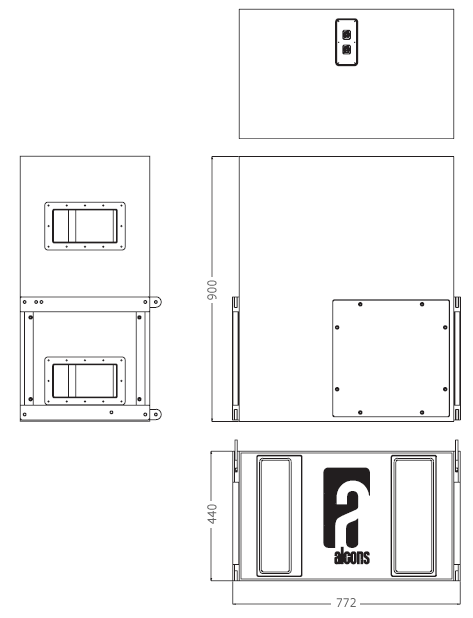

Physical
dimensions
mm
in.
Height
440
17.3
Width
772
30.4
Depth
990
35.4
Weight
(approx.)
53.3 kg
(117.3 lb)
Warranty
6 years limited
