The L24 is designed to be placed on the floor, in

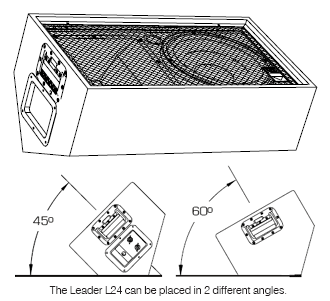

front of the musician. The L24 cabinet has a twin angle
design, making positioning in 2 angles possible; 45
degrees and 60 degrees.
Connection
The L24 has two 4-pole Speakon connectors. If you use
the L24 cabinet in 'passive' mode, read the mentions
below the connectors. If used in 'active' mode, read
the mentions above the connectors (Caution: Incorrect
connection when used in 'active' mode can cause damage
to the loudspeaker components).
Active /Passive switch
The 'active/passive' switch is located on the connector-panel
of the L24 cabinet. This switch is submerged to avoid
mistakenly switching of the 'active/passive' mode (Caution:
Never switch to
another mode when the cabinet is in use!). |
|
|
Maintenance
Maintenance on the L24, especially on the drivers and filters is
best left to official Stage Accompany service personnel. However,
cleaning of the housing can easily be done by yourself with a damp,
non fluffing cloth.
Options
The L24 is standard finished in SA black and is also available in
any possible RAL color (Multi Colour Option™). The L24 is available
with left and right hand rotated baffle. For road use there is also
a flightcase available.
Dynamic Damping Control DDC™
For absolute top quality sound reproduction, the L24 is completely
pre wired for Dynamic Damping Control™.
The DDC™ system is based on 2 loudspeaker wires that return from
the speaker to the (SA) amplifier. Through these “sense wires” the
amplifier can compensate the speaker cable and connector resistance,
ensuring maximum control over the speaker cone movement.
Recommendation
To use the L24 we recommend the ES20B power amplifier. This amplifier
is standard equipped with DDC™, resulting in a virtually infinite
amplifier damping factor at the speaker terminals. To use the DDC™
system with an ES20B amplifier, use Stage Accompany 4-pole LW Speakon
cable. The ES20B 's Extended Function Network (EFN™) module can
provide suitable filtering within the amplifier. |
| |
 |
 |
| |
 |
|
|
|
| |
Passive mode |
Active mode |
|
|
|
| Frequency
response |
80 Hz - 30 kHz (+/- 3dB) |
|
|
|
| Drivers |
1 x SA 1202 LF driver, 1 x SA 8535C MF/HF driver |
|
|
|
| Cross-over frequentie |
1400 Hz |
|
|
|
|
| Nominal impedance |
8 Ohm |
8 Ohm (LF) 13 Ohm (HF) |
|
|
|
| Sensitivity @
1W/1m |
99 dB |
100 dB (LF) 107 dB (HF) |
|
|
|
| Max. RMS power |
400 W |
400 W (LF) 60 W (HF) |
|
|
|
| Max. Peak power |
1000 W |
1000 W (LF) 1000 W (HF) |
|
|
|
| SPL program/peak
(dB) |
125/129 |
126/130 (LF), 125/137 (HF) |
|
|
|
| Dispersion (2
kHz H x V) |
70° x 40° |
|
|
|
|
| Color |
SA Black, other colors on request |
|
|
|
| Front |
Expanded metal grille + acoustic transparent
cloth |
|
|
|
| Connectors |
2 x 4 pole Speakons; 1 x Input, 1 x Link |
|
|
|

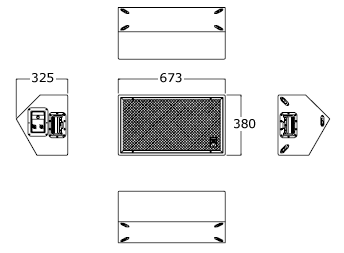

| Physical dimensions
(h x w x d) |
380 x 673 x 325 mm (15.0 x 26.5 x 12.8 in.) |
|
|
|
| Weight |
29 kg (63 lb) |
|
|
|
|
| |
| |
|
|
|
