When placing the C27(S) you can use either the tube
stand or the integrated Uni-Rig™ flying system.
If used with the tube stand you can combine this with
a Bass Series cabinet.
Connection
The C27(S) has two 4-pole Speakon connectors. If you
use the C27(S) cabinet in 'passive' mode, read the mentions
below the connectors. If used in 'active' mode, read
the mentions above the connectors
(Caution: Incorrect connection when used in 'active'
mode can cause damage to the loudspeaker components).
Active /Passive switch
The 'active/passive' switch is located on the connector-panel
of the C27(S) cabinet. This switch is submerged to avoid
mistakenly switching of the active/passive' mode (Caution:
Never switch to
another mode when the cabinet is in use!). |
|
|
Maintenance
Maintenance on the C27(S), especially on the drivers and filters
is best left to official Stage Accompany service personnel. However,
cleaning of the housing can easily be done by yourself with a damp,
non fluffing cloth.
Options
The C27 and C27S are standard finished in SA Black. The standard
version (C27) is also available in any possible RAL color (Multi
Color Option™).
Flying system
The C27(S) is standard equipped with the Uni-Rig™ flying system.
The accompanying “fly-ware” can be ordered at your local Stage Shop
or dealer.
Dynamic Damping Control DDC™
For absolute top quality sound reproduction, the C27(S) is completely
pre wired for Dynamic Damping Control™.

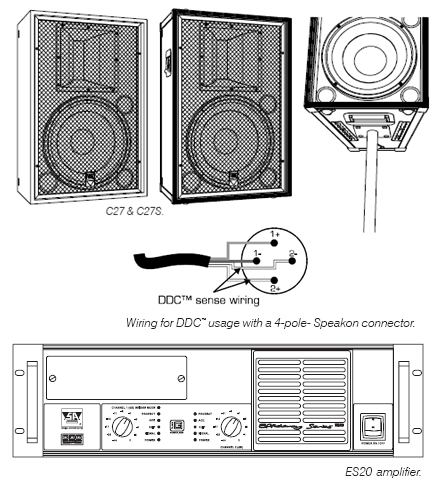

The DDC™ system is based on 2 loudspeaker wires that return from
the speaker to the (SA) amplifier. Through these “sense wires” the
amplifier can compensate the speaker cable and connector resistance,
ensuring maximum control over the speaker cone movement.
Recommendation
To use the C27(S) we recommend the ES 20 power amplifier. This amplifier
is standard equipped with DDC™, resulting in a virtually infinite
amplifier damping factor at the speaker terminals. To use the DDC™
system with an ES20 amplifier, use Stage Accompany 4-pole LW Speakon
cable. The ES20 's Extended Function Network (EFN™) module can provide
suitable filtering within the amplifier. |
| |
 |
|
| |
 |
|
|
|
| |
Passive mode |
Active mode |
|
|
|
| Frequency
response |
55 Hz - 30 kHz (+/- 3dB) |
|
|
|
| Drivers |
1 x SA 1502 LF driver, 1 x SA 8535 MF/HF driver |
|
|
|
| Cross-over frequentie |
1400 Hz |
|
|
|
|
| Nominal impedance |
8 Ohm |
8 Ohm (LF) 13 Ohm (HF) |
|
|
|
| Sensitivity @
1W/1m |
99 dB |
100 dB (LF) 107 dB (HF) |
|
|
|
| Max. RMS power |
400 W |
400 W (LF) 60 W (HF) |
|
|
|
| Max. Peak power |
1000 W |
1000 W (LF) 1000 W (HF) |
|
|
|
| SPL program/peak
(dB) |
125/129 |
126/130 (LF), 125/137 (HF) |
|
|
|
| Dispersion (2
kHz H x V) |
70° x 40° |
|
|
|
|
| Color |
SA Black, other colors on request |
|
|
|
| Front |
Expanded metal grille + acoustic transparent
cloth |
|
|
|
| Connectors |
2 x 4 pole Speakons; 1 x Input, 1 x Link |
|
|
|

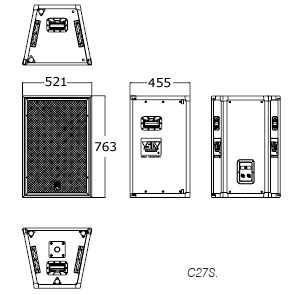

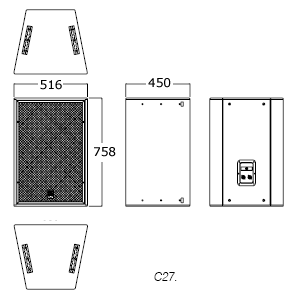

| Physical dimensions
(h x w x d) |
C27 758 x 516 x 450 mm (29.8 x 20.3 x 17.7 in.)
C27S 763 x 521 x 455 mm (30.0 x 20.5 x 17.9 in.) |
|
|
|
| Weight |
C27 40 kg (90 lb), C27S 45 kg (99 lb) |
|
|
|
|
| |
| |
|
|
|
