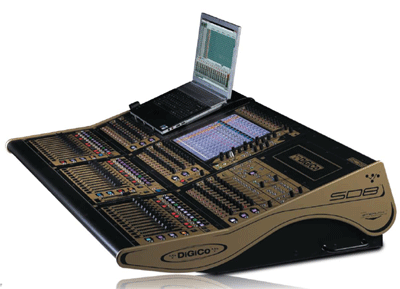

The new DiGiCo SD8 brings you the complete DiGiCo
digital mixing experience, from the ultimate in intuitive
user interfaces to the power and purity of Stealth Digital
Processing™, at a price point more commonly associated
with midrange mixing consoles.
Whether you’re moving up from an analogue console or
adding more flexibility to your existing systems, the
SD8 offers all the major features and versatility of
the acclaimed DiGiCo D Series. |
|
|
It’s also the world’s first ‘affordable’
console to provide the smoothness, accuracy and dynamic range of
the latest generation Super FPGA technology with floating point
processing, the heart of the groundbreaking DiGiCo SD7.
In its compact frame, the most affordable DiGiCo console ever built
provides a powerful array of live sound engineering tools, laid
out with the clarity you’d expect from a worksurface designed by
the award winning team at DiGiCo.
The SD8 offers an extensive specification in a complete digital
package. It has a stage MaDiRack with 48 microphone inputs as standard,
8 analogue outputs and dual MADI connections - making rehearsal
and live show recording simple and inexpensive - a digital MADI
multicore, a full worksurface with integral I/O consisting of:-
8 Mic/line inputs, 8 line outputs and 8 AES/EBU (mono).
The essentials of the channel and master facilities are exactly
as you’d find on any DiGiCo console and employ identical signal
paths for exemplary sonic quality. Each one of the 60 audio channels
can be selected as mono or full stereo (thanks to the Stealth processor’s
internal 120 channels of processing) allowing you to set up shows
with large numbers of stereo inputs, each with full EQ and dynamics.
This uncompromising solution replaces a rack full of outboard equipment
and places the key tools where you need them, in the channel itself
and - at a press of one button - at centre stage on the touch screen.
The screen is the same 15” TFT LCD specially developed for the SD7
and is matched with motorised faders arranged in blocks of 12 for
logical operation.
You’ll also appreciate DiGiCo’s snapshot automation, making scene
store and recall a simple task, while the master section incorporates
12 complete graphic equalisers with centre-detent faders for fast
system set-up.
Two discrete master busses, 24 mono or stereo busses and a 12 x
12 matrix complete the channel and bussing structure. But that’s
not all, since the versatile SD8 also provides dual solo busses
for greatly increased flexibility as a monitor console.
The DiGiCo SD8. A new world of performance and versatility in a
midrange console. |
| |
 |
|
| |
 |
|
|
|
| Faders |
37 x 100mm touch-sensitive, motorised |
|
|
|
| Screens |
1 x 15” (38cm) LCD high - resolution touch screen |
|
|
|
| Meters |
38 x 20-segment LED bargraph |
|
|
|
| Input Channels |
60 Mono or Stereo channels |
|
|
|
| Busses |
24 Mono or Stereo busses + LR master |
|
|
|
| Solo busses |
2 stereo busses |
|
|
|
| Matrix |
12 x 12 matrix (additional to busses above) |
|
|
|
| Control Groups |
12, selectable for VCA-style, Moving fader,
Mute Group |
|
|
|
| Graphic Eq |
12 x 32-band, Gain +/- 12dB |
|
|
|
| Internal FX |
6 Stereo FX processors |
|
|
|
| Local I/O |
8 x mic/line I/O, 8 x AES/EBU I/O (mono) |
|
|
|
| MADI interface |
2 redundant interfaces, 75 ohm BNC connectivity |
|
|
|
| Optic interface |
Optocore (Optional factory fit only) |
|
|
|
| MIDI interface |
In / Out / Through |
|
|
|
| VGA port |
DB-15 mini-female (1024 x 768 resolution) |
|
|
|
| USB ports (3) |
USB 2 |
|
|
|
| Light connection
(2) |
XLR3 1.2 / 12V |
|
|
|
| Ext Sync |
Word clock, AES, MADI, Optics |
|
|
|
| Headphone |
TRS unbalanced / 8-600 ohms 1/4 inch Jack |
|
|
|

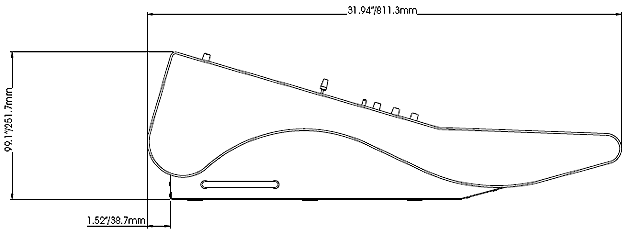

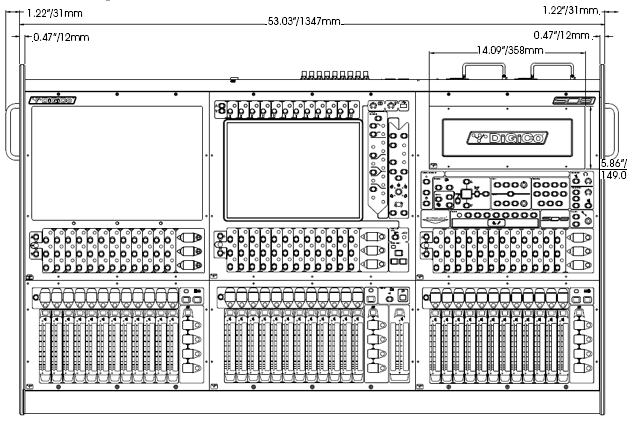

| Dimensions |
1347mm (w) x 811mm (d) x 254mm (h) |
|
|
|
| Weight |
71.3Kg (149.3Kg with optional flightcase) |
|
|
|
| Flightcase (Optional) |
1517mm (w) x 1133mm (h) x 452mm (d) |
|
|
|
| Power Requirements |
90-264 VAC, 47-63Hz Auto Sensing.
230VA typical, 295VA peak (meters full, faders moving) |
|
|
|
| Redundancy |
Internal PSU x 2 |
|
|
|
|
| |
| |
|
|
|
