RBN601 pro-ribbon HF driver with exceptional intelligibility
and high SPL output |
All Neodymium drivers for excellent performance-to-weight
ratio |
SIS pre-wired for very high damping and further reduced
distortion (with ALC) |
Extended headroom/SPL and protection in combination
with SDP modules (with ALC) |
Asymmetric enclosure provides maximum positioning
flexibility and optimum projection |
Stand mount adapter, 6-position fly track, fixed mounting
points (standard), swivel bracket (option) |
Passive filtering for easy operation and economical
powering, while maintaining maximum output |
|
Durotect™ scratch-resistant coating |
|
|
| |
 |

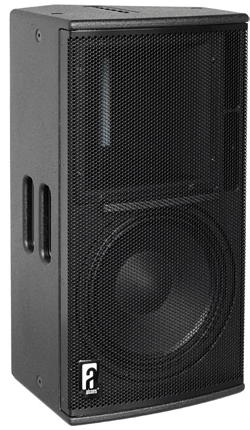

The VR12 is a 2-way compact multi-purpose
loudspeaker, for both portable and permanent applications.
Featuring the patented RBN601 pro-ribbon driver, the VR12 is ideal
for applications where high output, high quality reinforcement is
needed.
The RBN601 is mounted on a “revolvable” 90°x40° wave-guide and projects
with “Real-90” horizontal dispersion up to 20.000Hz..
The system includes dedicated filtering, but system equalizing is
done remotely (electronically) fully utilizing the individual speaker
components’ power capacity. This results in dramatically increased
headroom SPL.
The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector
compensation between VR12 and ALC. The asymmetrical enclosure design
provides for very flexible mounting (ceiling, wall) and usage.
Typical applications for the VR12 include main system for theatre,
A/V, PA, as well as high power stage monitoring. In applications
where extended bass response is required, the VR12 can be combined
with a pressure-bass or deep-sub system.
For full system performance, the VR12 needs to be driven by an ALC
controller-amplifier.
The peakerDriveProcessing ™ circuit of the ALC offers dedicated
protection and filtering, with remote system
equalizing; By fully utilizing the individual speaker components’
efficiency, this results in a 4dB increased headroom from 800Hz.,
under dedicated inaudible (power and excursion) protection.
The VR12 is available in standard version and “i” installation version,
without handle, standmount and tilt-point. Also, both models are
available as “m” version, without mirrored baffle. |
| |
 |
 |
| |
| |
| Frequency
Response |
| +/- 3 dB |
60 Hz - 20.000 Hz |
|
|
| +/- 10
dB |
50 Hz |
|
|
| Sensitivity
(SPL 1W/M) |
98 dB |
|
|
| Sensitivity
(nom.) |
100 dB (200 Hz - 10 KHz) |
|
|
| Nominal
Impedance |
8 ohms |
|
|
| Maximum
RMS power |
450 W |
|
|
| Maximum
peak power |
1500 W |
|
|
| SPL program/peak
(nom.) |
127/132 dB |
|
|
| Dispersion
H x V |
90° x 40° (nom.) or
40° x 90° (nom.) |
|
|
|
|
| System |
2-way, full-range |
|
|
| Filtering |
passive |
|
|
| Drivers
LF |
1 x AND12.3 12” |
|
|
| |
Neodymium, vented |
|
|
| Drivers
HF |
1 x RBN601 6”” |
|
|
| |
pro-ribbon driver |
|
|
| Cross-over
frequency |
1100 Hz |
|
|
| Connectors |
2 x Speakon NL4 input |
|
|
| Physical
dimensions |
mm |
in. |
|
|
|
| Height |
673 |
26.5 |
|
|
|
| Width |
350 |
13.8 |
|
|
|
| Depth |
345 |
13.6 |
|
|
|
| Weight
(approx.) |
18 kg |
(39.6 lb) |
|
|
|
| Warranty |
6 years limited |
|
|
|
|
| |
| |
|
|
|
