The XL-bin(S) should be placed on the floor. Please
note that bass-response may vary with the position of
the cabinet, through "acoustic coupling" (floor,
ceiling and wall reflections).
Connection
The XL-bin(S) has one 8-pole and two 4-pole Speakon
connectors and should be connected to the connector
panel of the appropriate power rack which comes with
the
Performer system. Because the XL-bin(S) is a low frequency
cabinet it must be connected to the 'low' output of
the connectorpanel. (see illustration below)
When the XL-bin(S) is used in combination with an ES
Series amplifier, use the appropriate filtering module
inside the amplifier. Then connect the XL-bin(S) to
the normal output connector of the ES Series amplifier.
|
|
|
Maintenance
Maintenance on the XL-bin(S), especially on the drivers is best
left to official Stage Accompany service personnel. However, cleaning
of the housing can easily be done by yourself with a damp, non fluffing
cloth.
Options
The XL-bin and XL-binS are finished in blue or black.
The standard version (XL-bin) is also available in any possible
RAL color (Multi Color Option™).
Dynamic Damping Control (DDC™)
For absolute top quality sound reproduction, the XL-bin(S) is completely
pre wired for Dynamic Damping Control™.

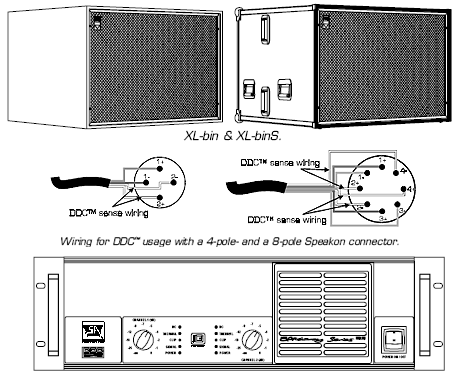

The DDC™ system is based on 2 loudspeaker wires that return from
the speaker to the (SA) amplifier. Through these "sense wires"
the amplifier can compensate the speaker cable and connector resistance,
ensuring maximum control over the speaker cone movement.
Recommendations
To use the XL-bin(S) separately from the Performer system we recommend
the ES 20 power amplifier. This amplifier is standard equipped with
DDC™, resulting in a virtually infinite amplifier damping factor
at the speaker terminals. To use the DDC™ system with an ES 20
amplifier, use Stage Accompany 4-pole LW Speakon cable (note: use
the 8-pole LW Speakon cable for the Performer PR-2 and PR-3 racks!).
The ES 20 's Extended Function Network (EFN™) module can provide
suitable filtering within the amplifier. |
| |
 |
|
| |
 |
| Frequency
response |
52 Hz - 135 Hz (+/- 3dB) |
|
|
| Recommended crossover
freq. |
100 Hz - 135 Hz |
|
|
| Drivers |
2 x SA 1513 LF driver |
|
|
| Nominal impedance |
4 W |
|
|
| Sensitivity @
1W/1m |
107 dB |
|
|
| SPL program/peak |
136/140 dB |
|
|
| Max. RMS power |
800 W |
|
|
| Max. Peak power |
2000 W |
|
|
| Color |
Blue, black, other colors on request |
|
|
| Front |
Expanded metal grille + acoustic transparent cloth |
|
|
| Connectors |
1 x 8 pole Speakon, 2 x 4 pole Speakons |
|
|
| Physical dimensions
(h x w x d) |

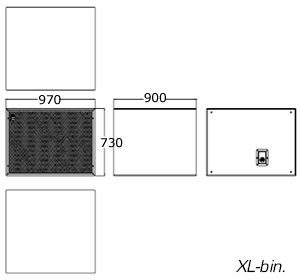

XL-bin 730 x 970 x 900 mm (28.7 x 38.2 x 35.4 in.)

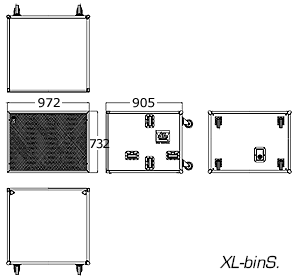

XL-binS 732 x 972 x 905 mm (28.8 x 38.3 x 35.6 in.) |
|
|
| Weight |
XL-bin 75 kg (165 lb), XL-binS 83 kg (183 lb) |
|
|
|
| |
| |
|
|
|
