RBN601 pro-ribbon HF driver with exceptional
intelligibility and “throw” |
Special mid-tapering for smooth off-axis response
(no lobes) |
|
Maximum attainable “gain-before-feedback” |
|
Extended bass response, usable down to 51Hz. |
|
SIS pre-wired for very high damping and further reduced
distortion (with ALC) |
Revolvable horn provides for versatile multi
application system: Vertical line-array
or horizontal
stand-alone |
|
Durotect™ scratch-resistant coating |
|
|
| |
 |
The LR16 is an active 2-way line-source
loud-speaker system. It is a true line-array system, to be used
as vertical array, either in stacked or flown configuration, for
both portable and permanent installations. Loaded with the RBN601
ribbon driver on a “morpher” wave-guide (92% frontal radiation),
the system features real-90 dispersion with seamless coverage, due
to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its
transient response caters for an amazing intelligibility and throw.
The compact size, combined with the easy and accurate flying system,
makes the system quick to set-up.
Special attention in the design was paid to creating a versatile
(and therefore economic) system; The system can be scaled from (part
of) a large-scale long-throw arena system to an ultra-compact single
cabinet system, with its revolvable wave-guide.
Furthermore, its lowest usable frequency is 51Hz., making the system
real full-range in most applications.
The SIS pre-wiring ensures complete cable/connector compensation
between the LR16 and ALC. Typical applications for the LR16 include
main system for theatre, A/V, PA or front-, in- and side-fill system.
In applications where extended bass response is required, the LR16
can be combined with the LR16B bass module or a BF362 deep-sub system.
For full system performance, we recommend using the LR16 in combination
with an ALC 2 (or ALC 4) amplifier/controller. Driven by the ALC,
the LR16 delivers maximum sound quality with inaudible (power and
excursion) protection (SDP circuit). |
| |
 |
 |
| |
| |
| Frequency
Response |
| +/- 3 dB |
70 Hz - 20.000 Hz |
|
|
| +/- 10
dB |
51 Hz - |
|
|
| Sensitivity
(SPL 1W/M) |
LF 97 dB, HF 105 dB |
|
|
| Sensitivity
nominal |
LF 99 dB, HF 105 dB |
|
|
| |
(200 Hz. - 10 kHz.) |
|
|
| Nominal
Impedance |
LF 8 ohms,
HF 8 ohms |
|
|
| Maximum
RMS power |
LF 560W, HF 70W |
|
|
| Maximum
peak power |
LF 1600W, HF 1000W |
|
|
| SPL program/peak
(nom.) |
LF 126/131 dB |
|
|
| |
HF 123/135 dB |
|
|
| Dispersion
H x V (array) |
90° x depending on |
|
|
| |
array length and shape |
|
|
| Dispersion
H x V (single) |
90° x 40° @4 kHz., |
|
|
| |
vertical use, revolved horn |
|
|
|
|
| System |
2-way, full-range |
|
|
| Filtering |
active (passive optional in vertical use) |
|
|
| Drivers
LF |
2 x AMB8 8”, vented |
|
|
| Driver
HF |
1 x RBN601 6”
ribbon driver |
|
|
| Cross-over
frequency |
1200 Hz |
|
|
| Connectors |
2 x Speakon NL8
input/link |
|
|

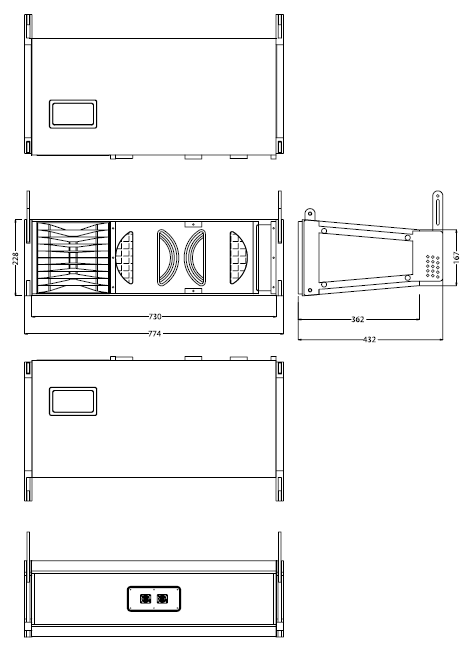

| Physical
dimensions |
mm |
inches |
|
|
|
| Height |
228/167 |
8.9/6.5 |
|
|
|
| Width |
774 |
30.5 |
|
|
|
| Depth |
434 |
17.1 |
|
|
|
| Weight
(approx.) |
29 kg |
(63.9 lb) |
|
|
|
| Warranty |
6 years limited |
|
|
|
|
| |
| |
| |
|
|
|
